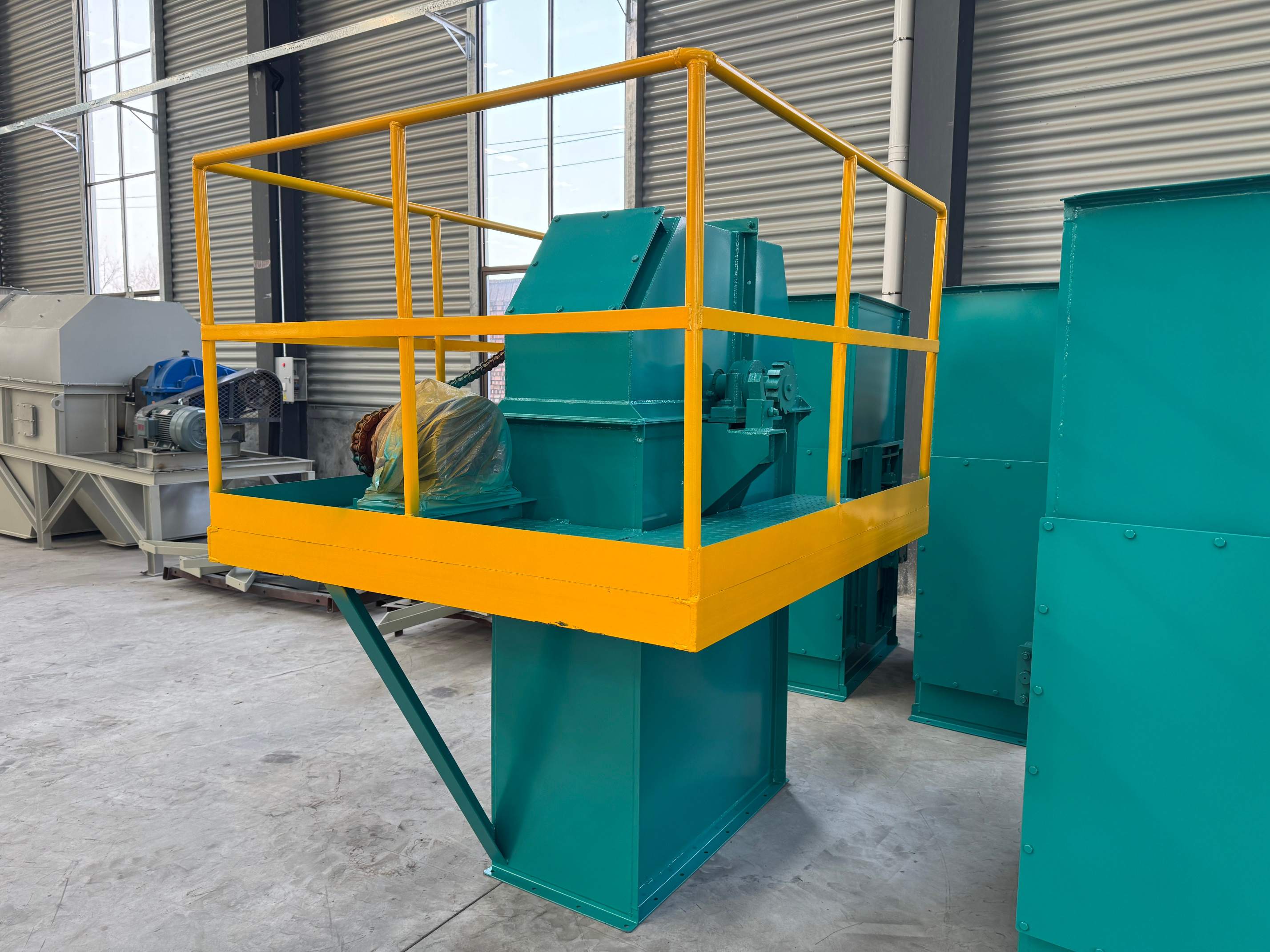

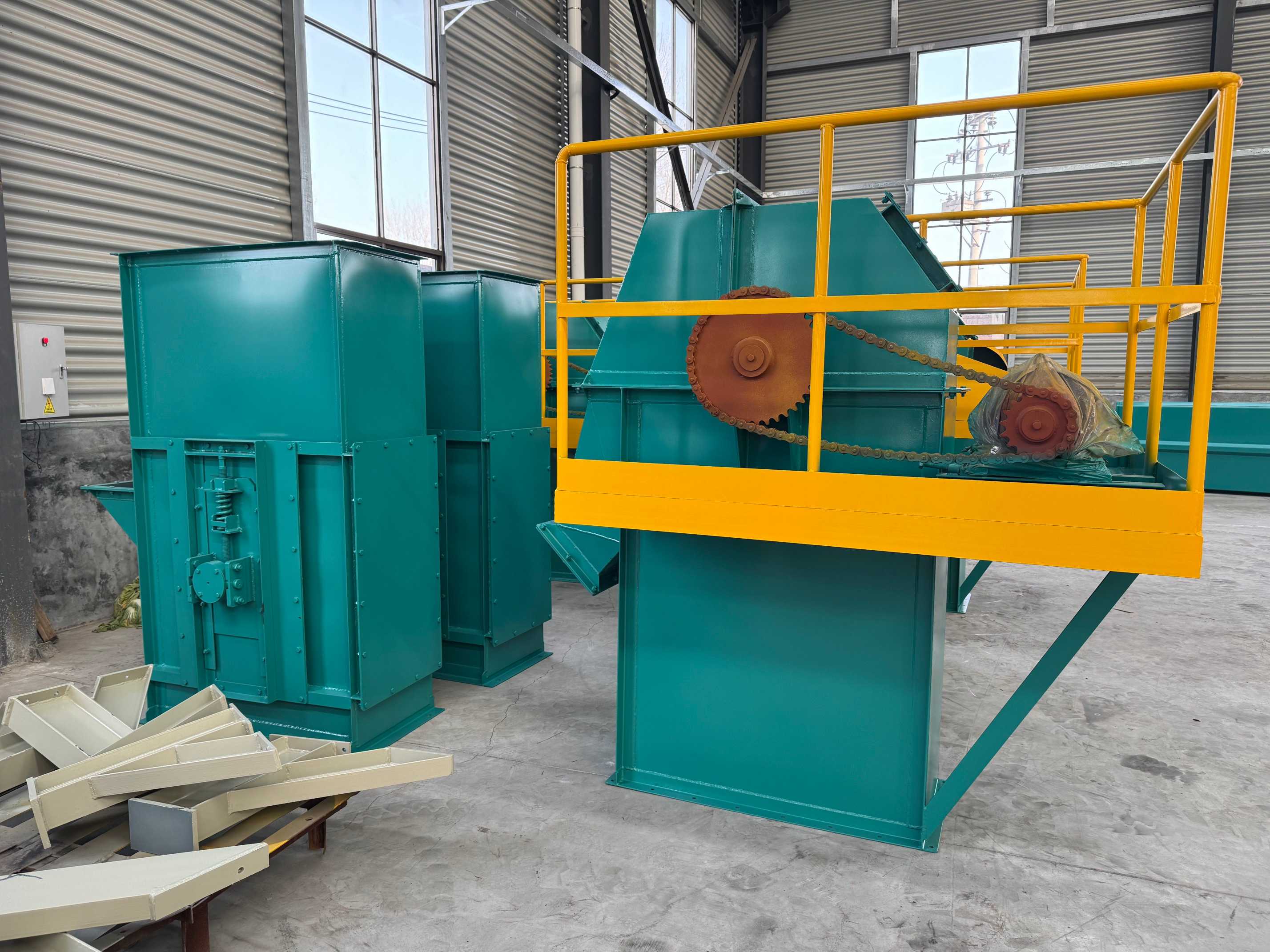

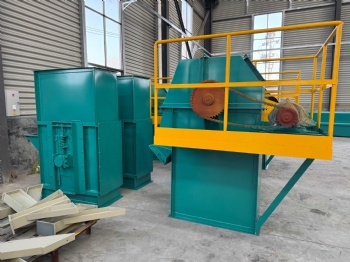

NE series chain bucket hoist

Product Overview

    The NE Series Chain Bucket Hoist is designed for the vertical conveying of powdery, granular, and lumpy materials, including those with high abrasiveness. The maximum allowable material temperature is generally 200°C, and the maximum lifting height can reach 40 meters.

    The NE Series includes 11 models: NE15, NE30, NE50, NE100, NE150, NE200, NE300, NE400, NE500, NE600, and NE800.

Key Features

1. 1.Wide Application Range:

• Suitable for a variety of materials including powders, granules, and lumps.

• Capable of handling highly abrasive materials.

• Maximum allowable material temperature is ≤ 250°C. (Note: There is a discrepancy between the overview (200°C) and features (250°C). The feature value is used here.)

2. 2.Large Conveying Capacity:

• Available in multiple sizes from NE15 to NE800.

• The lifting capacity ranges from 10 to 800 m³/h.

3. 3.Low Driving Power:

• Employs inflow feeding and gravity-induced discharge.

• Features densely arranged, large-capacity buckets, achieving a high lifting capacity at a moderate chain speed.

• Minimal material backflow during operation.

• Theoretically calculated shaft power is only 25% - 35% of that of a link chain elevator.

4. 4.Long Service Life:

• Inflow feeding minimizes extrusion and collision between materials.

• Prevents material spillage during feeding, lifting, and discharge, thus reducing abrasive wear.

• Utilizes a high-strength, wear-resistant plate chain for the conveying chain.

• Proven in long-term production by similar foreign products to have a chain service life exceeding 5 years.

5. 5.High Lifting Height:

• Moderate chain speed ensures smooth operation.

• High-strength, wear-resistant plate chain enables lifting heights of up to 50 meters. (Note: There is a discrepancy between the overview (40m) and features (50m). The feature value is used here.)

6. 6.Good Sealing, Minimal Environmental Pollution:

• Well-sealed structure prevents dust leakage.

7. 7.High Operational Reliability:

• Advanced design principles ensure reliable operation.

• Mean time between failures (MTBF) exceeds 30,000 hours.

8. 8.Easy Operation and Maintenance, Few Wear Parts:

• Simple and convenient to operate and maintain.

• Design minimizes the number of easily worn components.

9. 9.Compact Mechanical Dimensions:

• Smaller footprint compared to other elevators with equivalent lifting capacity.

10. 10.High Structural Precision:

• The machine casing is formed by folding and welding, ensuring good rigidity and an attractive appearance.

11. 11.Low Operating Cost:

• The combination of low power consumption, long service life, and minimal maintenance requirements results in a low overall operating cost.
